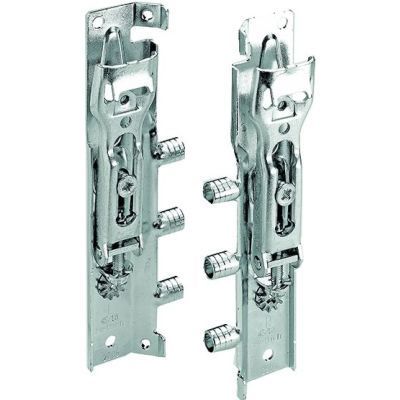

Подвес шкафа sah 216, правый 1069642 Hettich

Правый подвес для шкафов от Hettich, предназначен для навески фасадов на шину. Обеспечивает регулировку по высоте, глубине и боковому смещению, фиксируется в корпусе шкафа. Подходит для корпусной мебели с цоколем и без, используется в паре с левым подвесом.

• Материал — металл

• For use on the back of the rear panel
• For rail and hook suspension
• Load capacity 55 kg each in accordance with EN 15939 in test rack A (one pair of SAH per cabinet body; elements without own suspension, such as end shelves, are not permitted)

• Attached to side panel with 3 side pins
  and screwed down in the rear panel groove
• Suitable for use with rear panel recess of 16 mm and over
• Fast, easy height adjustment by means of sturdy
  adjustment screw and gear: ± 8 mm
• Depth adjustment: 25 mm max.
• Side adjustment: ± 3 mm for hook suspension
• Adjustment screws are protected from becoming unscrewed accidentally
• Lift off height: 7.5 mm

• Hook suspension: the closed shape of the hook
  prevents the cabinet from slipping off
• Suitable for use with B, H or M type suspension rails

• Galvanised steel - fully recyclable
• MUST ALWAYS be screwed into the cabinet body side.
• Optional "lift off guard" function by means of special screw
